Stud Steel Double End 1-1/4" Threaded 4" Both Ends

  • Length (Inches)
  • Grade
  • Finish
  • Thread Type
  • Thread Hand
  • Thread Class
Add to cart
Add to wishlist
Price
$ 10.50 $ 10.50

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Grade: A36
Finish: Plain
Thread Type: UNC-7 TPI
Thread Hand: Right
Thread Class: 2A
Documents

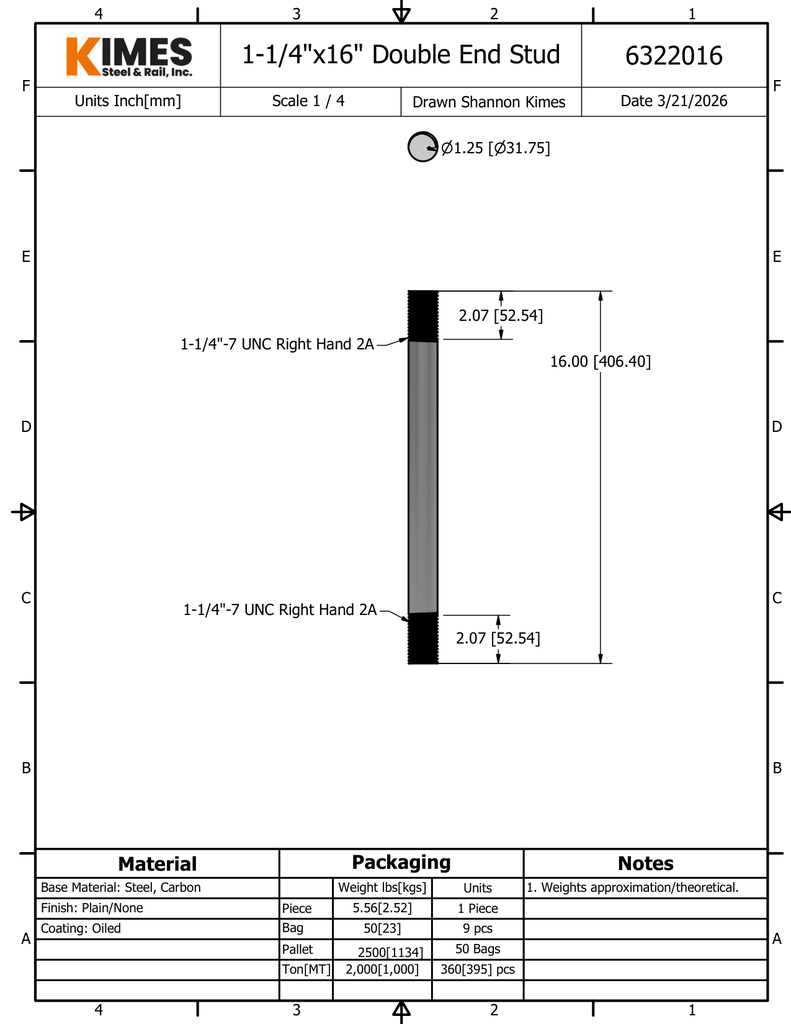

6322006.pdf 6322006.step 6322006.stl 6322008.pdf 6322008.step 6322008.stl 6322010.pdf 6322010.step 6322010.stl 6322012.pdf 6322012.step 6322012.stl 6322014.pdf 6322014.step 6322014.stl 6322016.pdf 6322016.step 6322016.stl 6322018.pdf 6322018.step 6322018.stl 6322020.pdf 6322020.step 6322020.stl 6322022.pdf 6322022.step 6322022.stl 6322024.pdf 6322024.step 6322024.stl

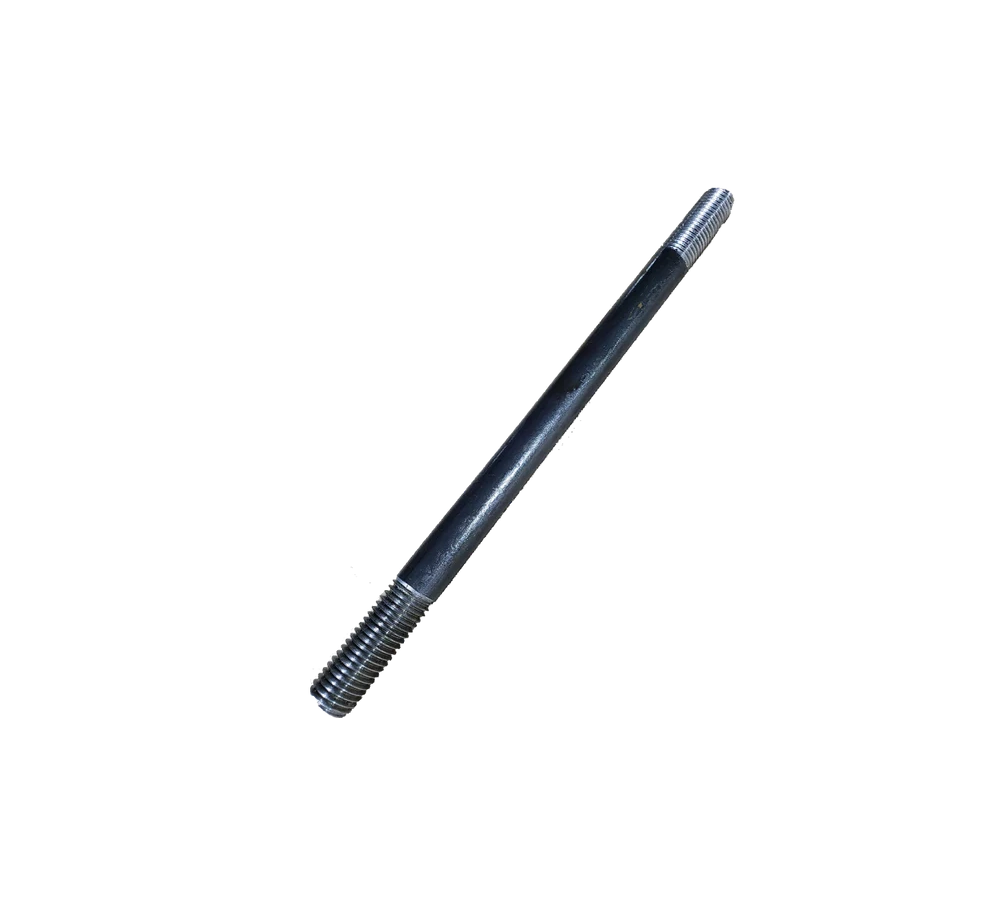

Double-End Threaded Stud — 1-1/4"-7 UNC

Carbon steel double-end threaded stud, 1-1/4" diameter, 7 TPI UNC thread. Threaded 4" on each end with a plain center section — longer thread engagement than the smaller diameter studs.

Available Lengths

  • 1-1/4" × 6"
  • 1-1/4" × 8"
  • 1-1/4" × 10"
  • 1-1/4" × 12"
  • 1-1/4" × 14"
  • 1-1/4" × 18"
  • 1-1/4" × 20"
  • 1-1/4" × 22"
  • 1-1/4" × 24"

Specifications

  • Diameter: 1-1/4"
  • Thread: 7 TPI UNC
  • Thread length: 4" each end
  • Material: Carbon steel, plain finish
