Axle Beam B-520 — 1911 Carnegie steel section

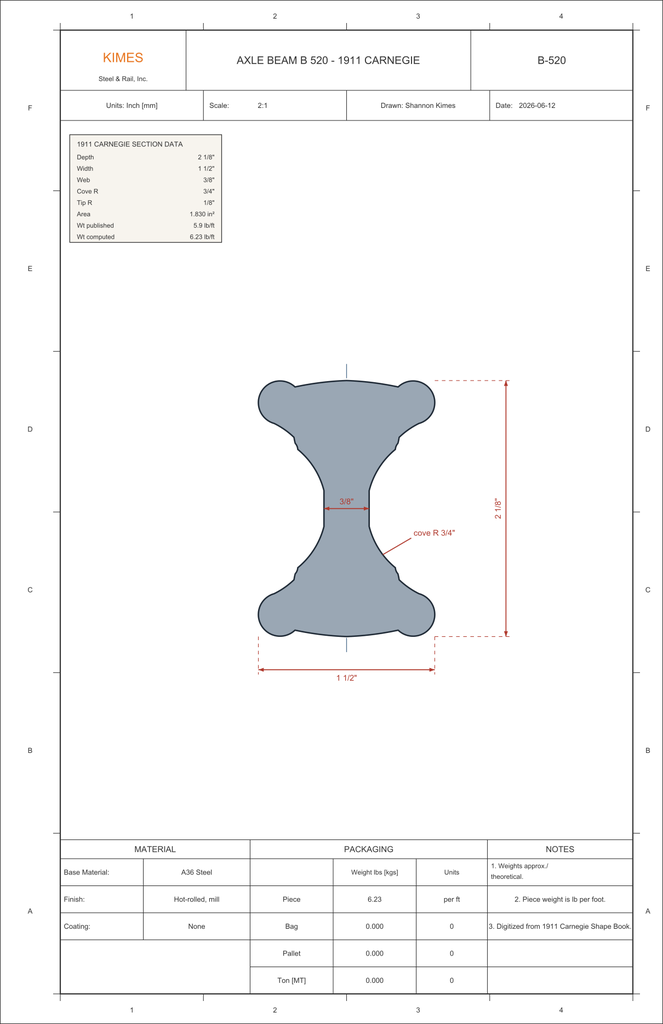

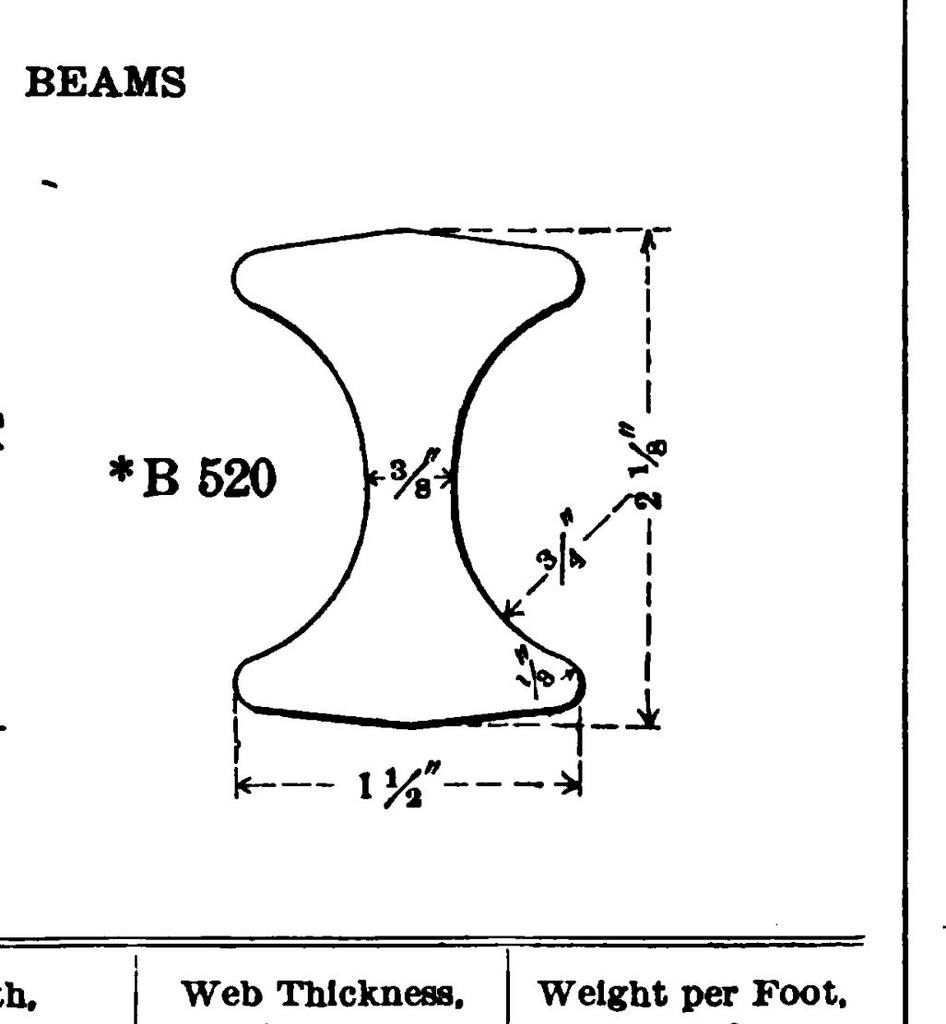

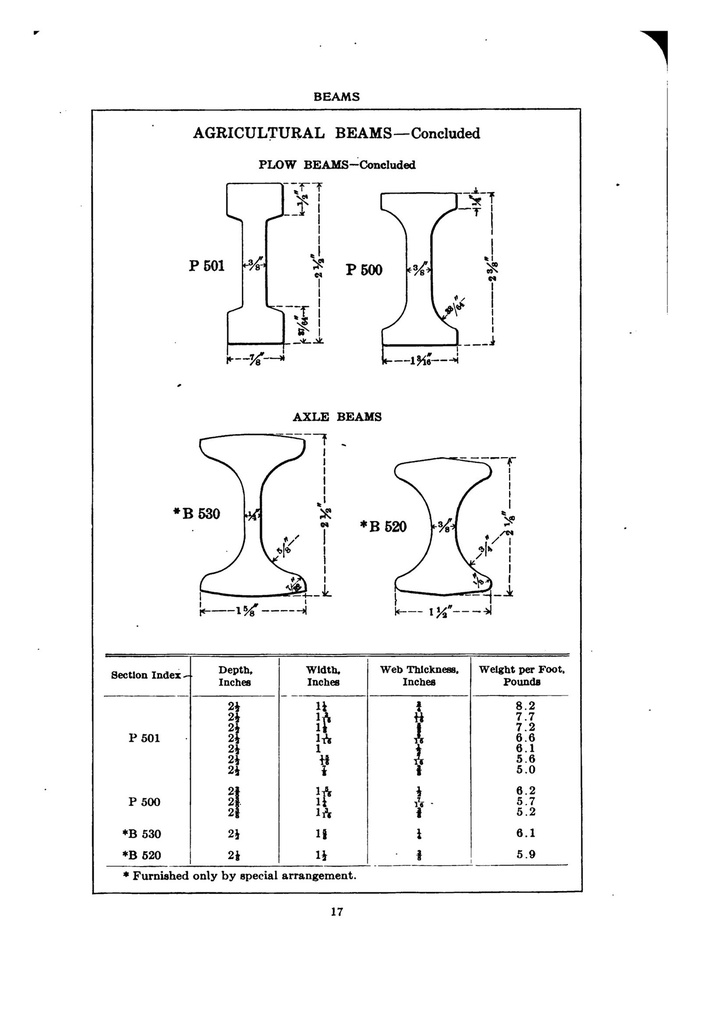

Authentic hot-rolled steel section reproduced from the 1911 Carnegie Shape Book. Profile digitized from the original engraving and rolled to order on our mill. Section data below; see the product images for the original 1911 figure with its dimension callouts and the full catalog page.
| Section index | B 520 |
| Section type | Axle Beam |
| Depth | 2 1/8" |
| Width | 1 1/2" |
| Web thickness | 3/8" |
| Cove radius | 3/4" |
| Tip radius | 1/8" |
| Section area | 1.830 in² |
| Weight (1911 published) | 5.90 lb/ft |
| Weight (computed from profile) | 6.23 lb/ft |
| Source | Carnegie Shape Book, 1911 edition, page 17 |
All dimensions in inches; weights are theoretical at 490 lb/ft³ steel. Available in the listed 1911 size or adapted to your requirements — contact Kimes Steel & Rail for custom rolling.
