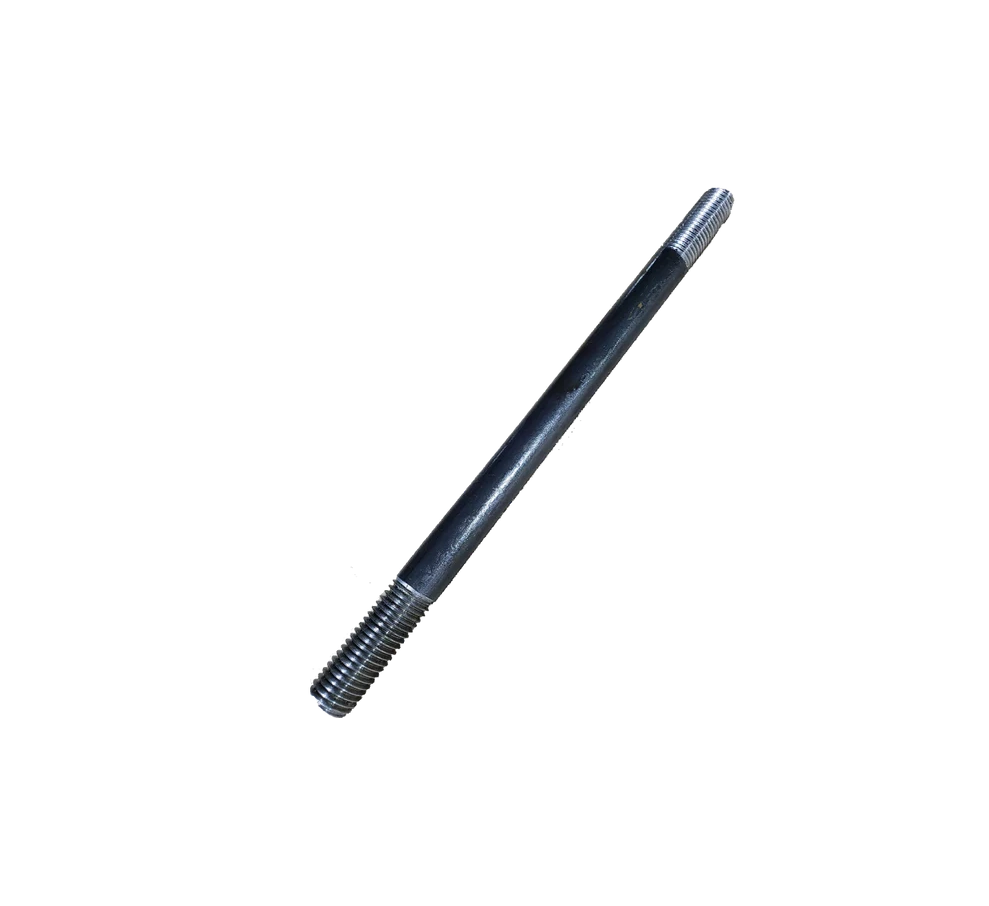

Stud Steel Double End 1/2" Threaded 2" Both Ends

  • Length (Inches)
  • Grade
  • Finish
  • Thread Type
  • Thread Hand
  • Thread Class
Add to cart
Add to wishlist
Price
$ 3.15 $ 3.15

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Grade: A36
Finish: Plain
Thread Type: UNC-13 TPI
Thread Hand: Right
Thread Class: 2A

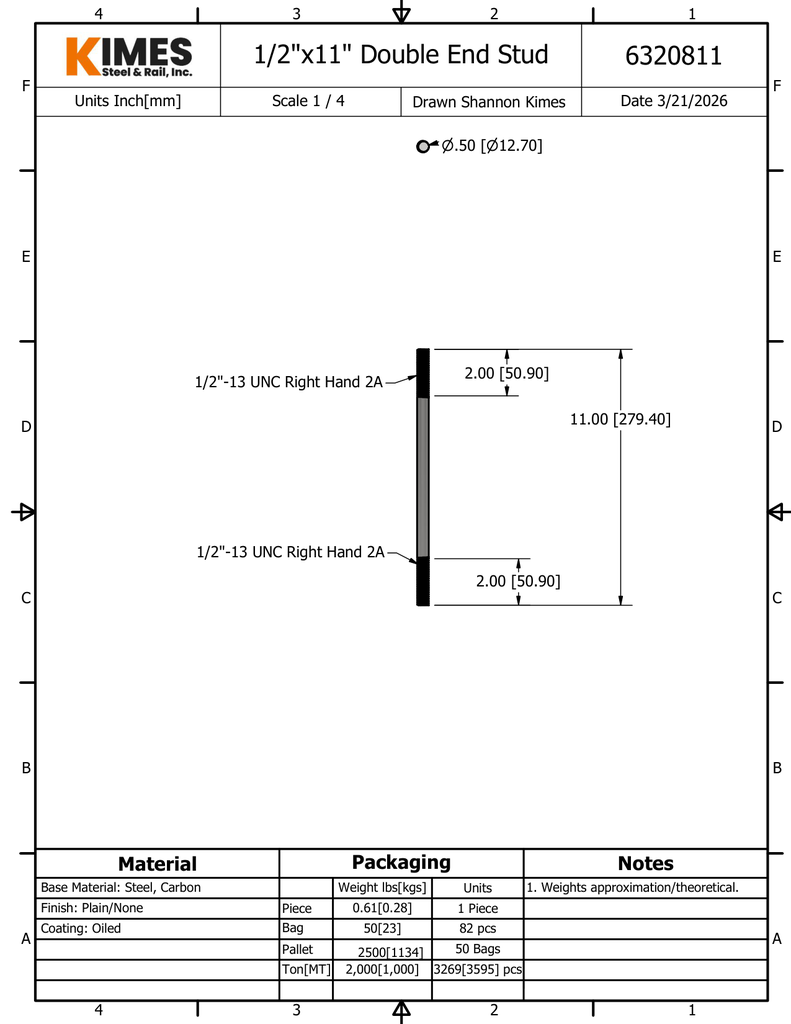

Documents
6320804.pdf 6320804.step 6320804.stl 6320806.pdf 6320806.step 6320806.stl 6320808.pdf 6320808.step 6320808.stl 6320810.pdf 6320810.step 6320810.stl 6320811.pdf 6320811.step 6320811.stl 6320812.pdf 6320812.step 6320812.stl 6320814.pdf 6320814.step 6320814.stl 6320816.pdf 6320816.step 6320816.stl 6320818.pdf 6320818.step 6320818.stl 6320820.pdf 6320820.step 6320820.stl 6320822.pdf 6320822.step 6320822.stl 6320824.pdf 6320824.step 6320824.stl

Double-End Threaded Stud — 1/2"-13 UNC

Carbon steel double-end threaded stud, 1/2" diameter, 13 TPI UNC thread. Threaded 2" on each end with a plain (unthreaded) center section. Used in railroad track hardware, flange bolting, and general industrial fastening where nuts are required on both ends.

Available Lengths

  • 1/2" × 6"
  • 1/2" × 8"
  • 1/2" × 10"
  • 1/2" × 12"
  • 1/2" × 14"
  • 1/2" × 16"

Need a longer length? 1/2" × 18" through 24" are stocked as gauge rods. Custom lengths available on request — contact us.

Specifications

  • Diameter: 1/2"
  • Thread: 13 TPI UNC (Unified National Coarse)
  • Thread length: 2" each end
  • Material: Carbon steel, plain finish
